Hydraulic clamp DIE CLAMP

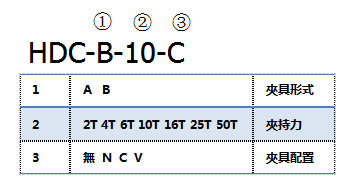

Type selection：
無表示：Standard form
N: induction type
C: Cylinder type
V：High temperature resistant
型式HDCB- | -2 | -4 | -6 | -10 | -16 | -25 | -50 |
Clamping force tons | 2 | 4 | 6 | 10 | 16 | 25 | 50 |
Total stroke mm | 8 | 8 | 8 | 8 | 8 | 8 | 10 |
Jig travel mm | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
Reserved stroke mm | 5 | 5 | 5 | 5 | 5 | 5 | 6 |
Cylinder capacity cc | 7.5 | 13 | 21 | 38 | 55 | 98 | 220 |

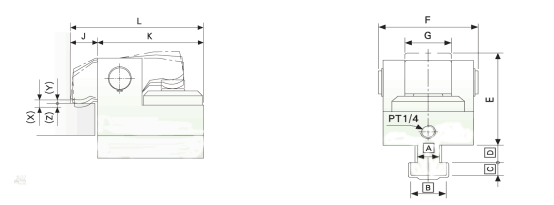

型式 | L | K | J | min.E | F | G | MIN.C |
HDCB-2 | 110 | 90 | 20 | 73 | 68 | 32 | 10 |
HDCB-4 | 134 | 110 | 24 | 77 | 79 | 40 | 12 |
HDCB-6 | 159 | 130 | 29 | 92 | 96 | 46 | 14 |
HDCB-10 | 189 | 159 | 30 | 114 | 117 | 54 | 16 |
HDCB-16 | 230 | 200 | 30 | 126 | 129 | 58 | 20 |
HDCB-25 | 265 | 235 | 30 | 148 | 156 | 70 | 23 |
HDCB-50 | 320 | 290 | 30 | 180 | 246 | 110 | 34 |
function declaration：

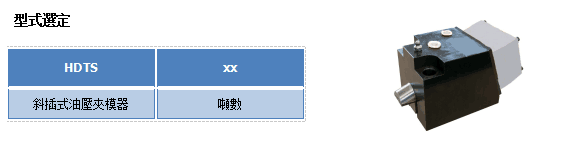

型式（HDTS) | -01 | -02 | -03 | -04 | -06 | -10 | -16 | -25 | -40 | -50 |
夾緊力量(140kg/cm2) | (tf) | 1 | 1.5 | 2.4 | 4 | 6.3 | 10 | 16 | 25 | 40 | 50 |
維持力量(140kg/cm2) | (tf) | 1 | 1.5 | 2.4 | 4 | 6.3 | 10 | 16 | 25 | 40 | 50 |
維持力量(0kg/cm2) | (tf) | 0.2 | 0.3 | 0.5 | 0.8 | 1.0 | 2.0 | 3.0 | 5.0 | 8.0 | 8.0 |
餘留行程 | (mm) | 1.0 | 1.5 |
Appearance size：

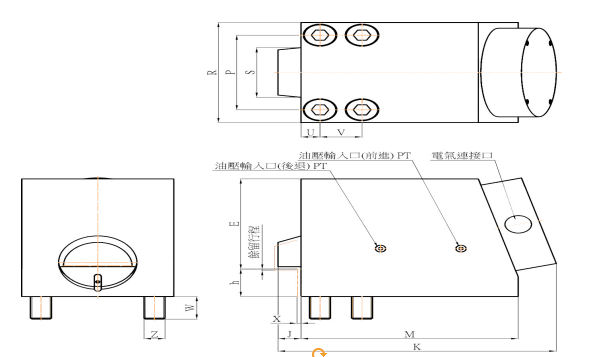

型式HDTS- | E | J | K | M | P | PT | R | S | U | V | W | X | Z |
-01 | 41 | 9 | 138 | 86 | 33 | PT-1/8" | 50 | 18 | 8 | - | 12 | 1.5 | M8 |
-02 | 48 | 9 | 149 | 98 | 39 |
| 60 | 22 | 9.5 | - | 17 |
| M10 |
-03 | 56 | 10 | 159 | 112 | 50 |
| 74 | 28 | 11 | - | 21 | 2 | M12 |
-04 | 69 | 12 | 180 | 128 | 62 | PT-1/4" | 92 | 35 | 14 | - | 27 |
| M16 |
-06 | 82 | 14 | 202 | 145 | 76 |
| 112 | 45 | 17 | - | 33 | 3 | M20 |
-10 | 106 | 18 | 215 | 160 | 95 |
| 137 | 56 | 20 | - | 36 |
| M24 |
-16 | 140 | 20 | 262 | 210 | 104 |
| 140 | 67 | 17 | 40 | 33 | 5 | M20 |
-25 | 170 | 26 | 308 | 250 | 130 |
| 172 | 85 | 20 | 50 | 40 |
| M24 |
-40 | 195 | 30 | 360 | 310 | 162 | PT-3/8" | 217 | 112 | 27 | 60 | 50 |
| M30 |
-50 | 195 | 30 | 360 | 310 | 162 |
| 217 | 112 | 27 | 60 | 50 |
| M33 |
matters need attention
The travel data listed in the table are used for standard molds
Custom itinerary length
Inform the mold height (H)
