A generation of electric injection molding machine in reliability, timeliness and energy control can significantly improve the.Jp grosfilley follow the development trend in the MCC rotating equipment product development, in response to the new development of the "new generation" platform resulting.

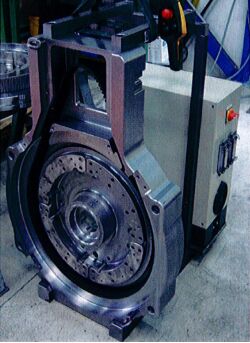

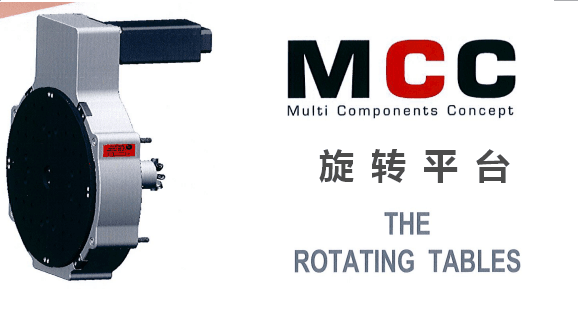

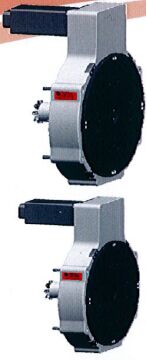

New generation rotating platform
actual range
Type G30 - can be used in 250 to 500t injection molding machine
Maximum load weight:2000Kg
- weight adjustment time: -2 seconds
Through adjusting ring diameters of 12 4-8 (8/6 hole)
- water and oil
-调节角度:180°,120°,90°
Frictionless rotation
- more oval or plane axis to support loading and laying the conversion between the two rows of rollers
- motor drive torque and tooth tie
- without regular maintenance
Reliable positioning
Absolute encoder and travel switch dual control
- open the parking brake in case of power interruption
- make sure the machine is connected
Conventional water oil general
- special sealing material between bearing and composite gasket
Rotating base and platform for easy
Interactive control and bidirectional operation between the system and the rotating base
- replacement time less than 1 hours
