動力單元 AIR DRIVE HYDRAULIC POWER

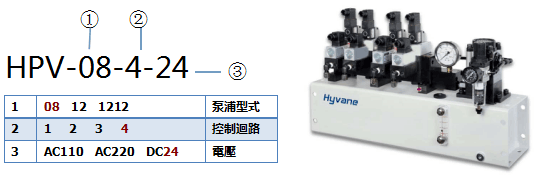

型式選定

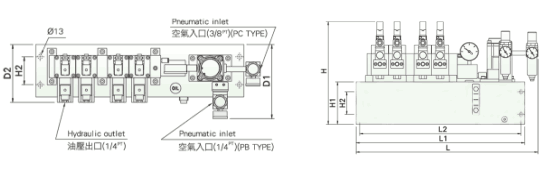

MODEL型式 | L | L1 | L2 | H | H1 | H2 | D1 | D2 | V |
HPV-08-4 | - | 588 | 563 | 367 | 150 | 80 | 235 | - | 10l |
HPV-12-4 | 650 | 588 | 563 | 367 | 150 | 80 | - | 175 | 10l |
HPV-1212-4 | 990 | 868 | 843 | 417 | 200 | 80 | - | 225 | 10l |
●The use of air pressure drive. Check function
- circuit control system, air pressure disappears when oil pressure can be maintained.
- with pressure detection function.
- quick die change system normal pressure is 250kgf/c square meters
- using HDCA and hdcb-16 or type 25 fixture to recommend the use of hpv12 type pump.
